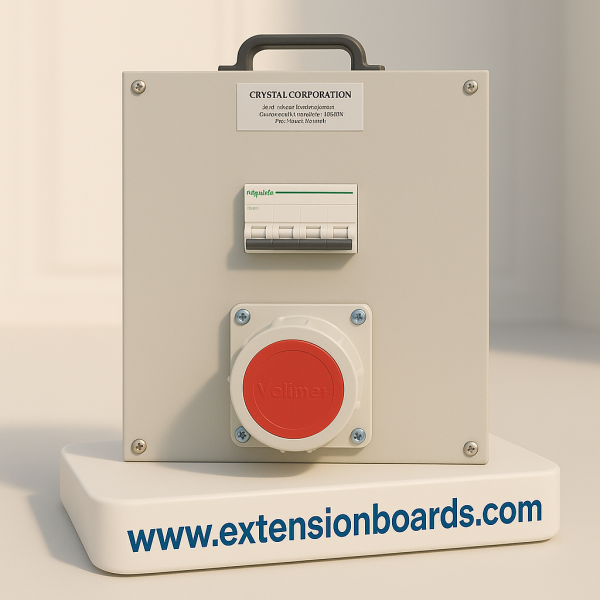

Submersible Power Distribution Panel
Overview:
Engineered for demanding environments like construction sites, maintenance zones, shutdown operations, and outdoor events, this heavy-duty industrial extension board offers rugged performance, safety, and portability. Built with a tough polycarbonate IP67-rated enclosure, it protects internal components from dust, water, and mechanical shock — ensuring reliability even in the harshest conditions.
Enclosure Material: Industrial-grade Polycarbonate, impact & UV resistant
Protection Rating: IP67 – Fully waterproof & dustproof
Design: Compact, lightweight, and easy to carry with integrated handle
Mounting: Floor-standing on molded legs, optional wall-mount version available
Build Quality: Shockproof, rustproof, and flame-retardant design
Available in Single Phase & Three Phase socket options
Polycarbonate Industrial Sockets:
IP44 (splashproof) or IP67 (waterproof)
Available in 16A / 32A / 63A
3-Pin, 4-Pin, and 5-Pin configurations
Color-coded and lockable
Custom Socket Combinations:
Mix of IP44 & IP67 sockets
Single-phase & three-phase sockets in one board
Optional domestic sockets also available
MCB (Miniature Circuit Breaker) – Overload and short circuit protection
RCCB (Residual Current Circuit Breaker) – Earth leakage protection
RCBO (MCB + RCCB) – Compact dual protection in one device
EL + MCB Combo – Earth leakage with modular overload protection
Main Incomer: Industrial plug or cable gland with locking system
All breakers and protection devices are ISI-marked and prewired using FRLS copper wires.
| Feature | Specification |
|---|---|
| Input Voltage | 110V / 230V / 415V AC |
| Rated Current | 16A to 63A (configurable) |
| Phase Type | Single / Three / Mixed Phase |
| Enclosure Rating | IP67 Polycarbonate, IK10 Impact Rating |
| Cable Entry | Gland, Plug, or Cable Tie system |
| Safety Compliances | CE, RoHS, IS Standard |
| Carrying Handle | Yes – Molded ergonomic design |
| Weight | Approx. 3.5 – 6.5 kg depending on config |
| Dimensions | H230 MM -W-305-D 200 |
Site Construction & Civil Work Power
Industrial Machine or Equipment Supply
AC Compressor / Chiller Connection
Temporary Power Distribution in Shutdowns
Outdoor Events, Exhibitions, Audio-Visual Power
Railways, Oil & Gas Field Sites, Tunnels
Number of sockets: 2-Sockets to 8-Sockets
Socket layout: Horizontal / Vertical / Mixed
Quality tested before dispatch
Delivery lead time: – 5-10 working days for standard units
OEM / Bulk orders available
