Industrial Power Distribution Panel

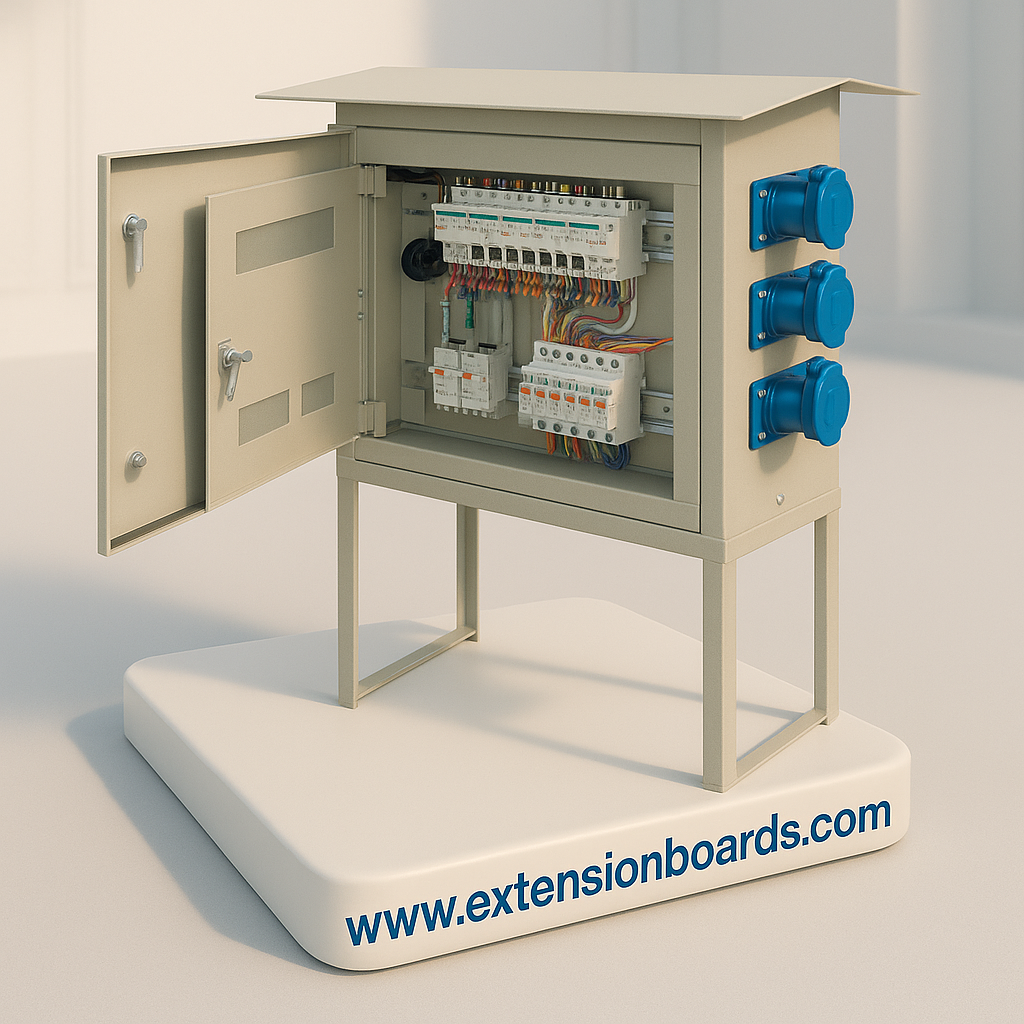

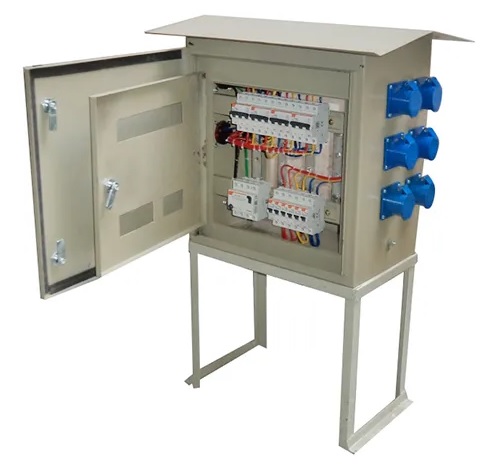

🔌 Industrial Power Distribution Panel (Outdoor Ready with Stand)

Product Description:

This Heavy-Duty Industrial Panel is a robust, outdoor-rated solution designed for power distribution at construction sites, industrial shutdowns, event power setups, and temporary electrical installations. It supports single-phase, Three-phase, or combined connections, with a wide range of customizable socket and protection options.

⚙️ Key Features:

• Enclosure Type: CRCA Steel / Powder Coated Sheet Metal Cabinet

• Configuration: Single Door or Double Door (customizable)

• Mounting: Comes with a heavy-duty MS stand for outdoor or elevated use

• Weather Protection: Optional IP44/IP55 / IP65 sealed enclosure for dust & water resistance

• Cable Entry: Bottom Cable Entry or Gland plate.

• Finish: Epoxy/polyester powder coating, corrosion-resistant

• Locking System: Hinges Type with cam locks for added security

🔄 Socket Options (Customizable):

1. Metal Clad Sockets

   • 16A / 32A / 63A

   • 2-pin, 3-pin, or 5-pin

   • Ideal for rugged industrial tools & machines

2. Polycarbonate Industrial Sockets (IEC 60309 Standard)

   • IP44 (splashproof) or IP67 (waterproof)

   • Available in single-phase and three-phase

   • Vibrant color-coded design for voltage/frequency identification

3. Domestic Sockets

   • 6A / 16A socket-outlet combinations

   • Modular switchgear-based layout

🧯 Incomer Protection (Safety First):

Choose from a range of protection devices as per project/site load:

• MCB: Miniature Circuit Breaker for overload and short circuit

• RCCB: Residual Current Circuit Breaker for human safety (30mA / 100mA)

• ELCB: Earth Leakage Circuit Breaker for system ground fault protection

• RCBO: Combination of MCB + RCCB for compact space and all-in-one protection

⚡ Technical Highlights:

🧰 Customization Options:

• Socket Configuration: Any mix of Single-phase / Three-phase

• No. of sockets: From 4,6, to 8- Sockets or more

• Optional Energy Meter, Timer Switch, or Indicator Lamps

• Panel Legs: Fixed Stand or Wheeled Trolley

• Optional Transparent Window on Door (for visual inspection)

• Panel Depth: 150mm to 400mm depending on number of devices

🏗️ Applications:

• Industrial Shutdown Maintenance

• Outdoor Construction & Infrastructure Sites

• Road & Bridge Projects

• Event Power Distribution (temporary stages, stalls)

• Mining, Oil & Gas, and Shipyard operations

• Emergency Power Supply Panels

📦 Delivery & Quality:

• Assembled with premium ISI-marked MCBs & RCCBs,RCBO’S

• All wiring done with FRLS grade copper cables

• Factory-tested for continuity, insulation, and mechanical stability

• Packaged in Corrugated Box Or Wooden crate or shockproof packaging for transport as per requirements
