Rs 99.99
Surge protected industrial extension board

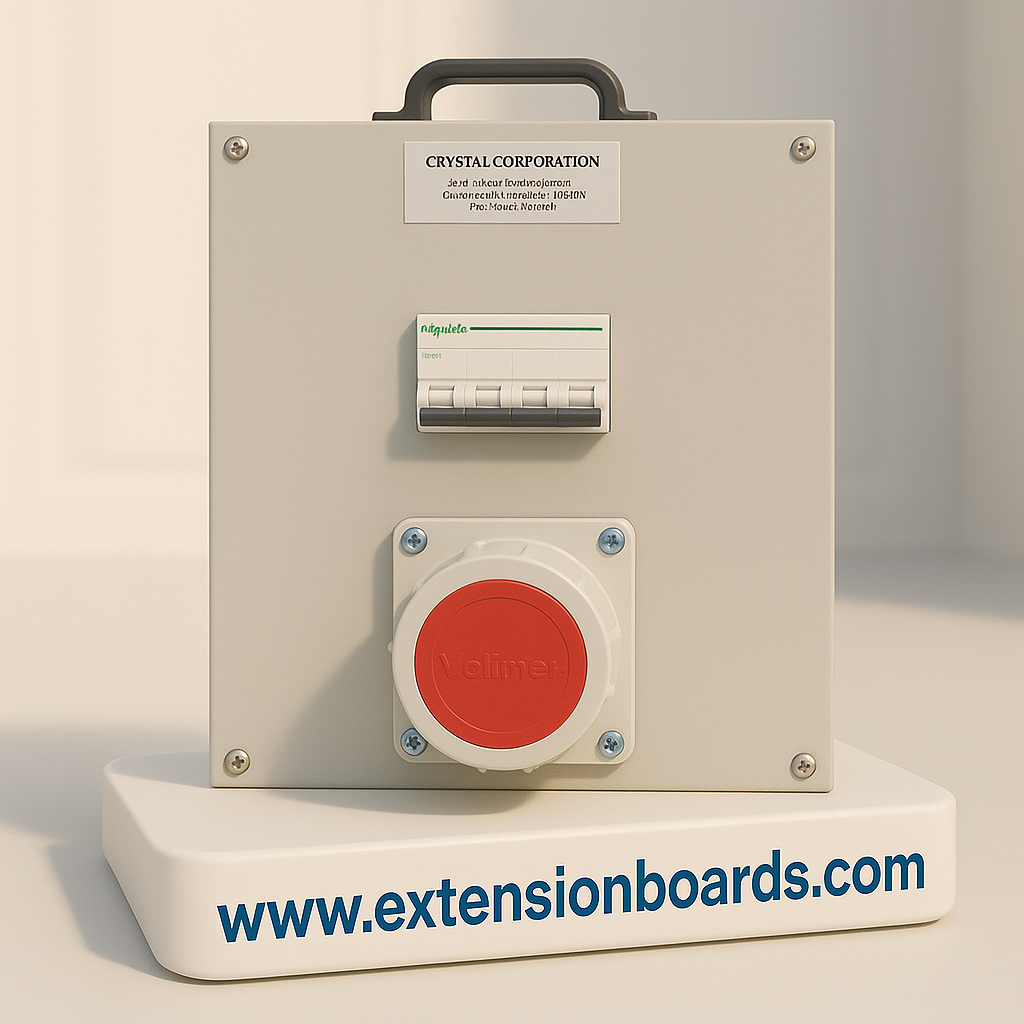

This premium-grade industrial power outlet unit features a 63 Amp, 5-pin IP67 socket with built-in RCCB protection, designed to power welding equipment, industrial machinery, or mobile extension boards. The enclosure is impact-resistant and weatherproof, built for long life under demanding operating conditions.
Perfectly suited for construction sites, fabrication yards, shutdowns, and temporary high-load setups.
| Feature | Specification |
|---|---|
| Socket Rating | 63A, 5-Pin, 3P+N+E |
| Socket Standard | IEC 60309 (Industrial Grade) |
| IP Rating | IP67 – Dust tight & water immersion safe |
| Voltage | 415V AC, 50/60Hz |
| Material | High-impact thermoplastic / flame retardant |
| Incomer Protection | RCCB ( 4 Pole) |
| RCCB Rating | 63A, 30mA / 100mA sensitivity |
| Breaker Brand | (RCCB BRAND as per order) |
| Enclosure | CRCA / ABS / Polycarbonate (custom) |
| Handle | Yes – ergonomic molded carry handle |
| Mounting | Portable or optional wall/floor mount |
| Cable Entry | Top/Bottom gland plate or direct socket inlet |
✅ RCCB (Residual Current Circuit Breaker) for personnel safety from earth leakage
✅ High-grade MCB or RCBO optional for overload protection
✅ IP67 protection ensures safety in outdoor or washdown environments
✅ Fully prewired, ready-to-use design
Welding Machines – TIG, MIG, ARC Welders
CNC / Laser Machines
Mobile Extension Boards for Outdoor Sites
Generator-based Power Distribution
Heavy-duty Industrial Tools
Power Source for Fabrication Yards
Temporary Power in Railways, Shipyards, Mining
Socket Type: 3P+E or 3P+N+E
RCCB sensitivity: 30mA / 100mA / 300mA
Add-on options: Indicator lamps, voltmeter, digital meter
Portable trolley or wall-mount cabinet
Cable gland or industrial plug input
Enclosure: MS Powder Coated / Polycarbonate / FRP
Pre-wired and ready-to-install
