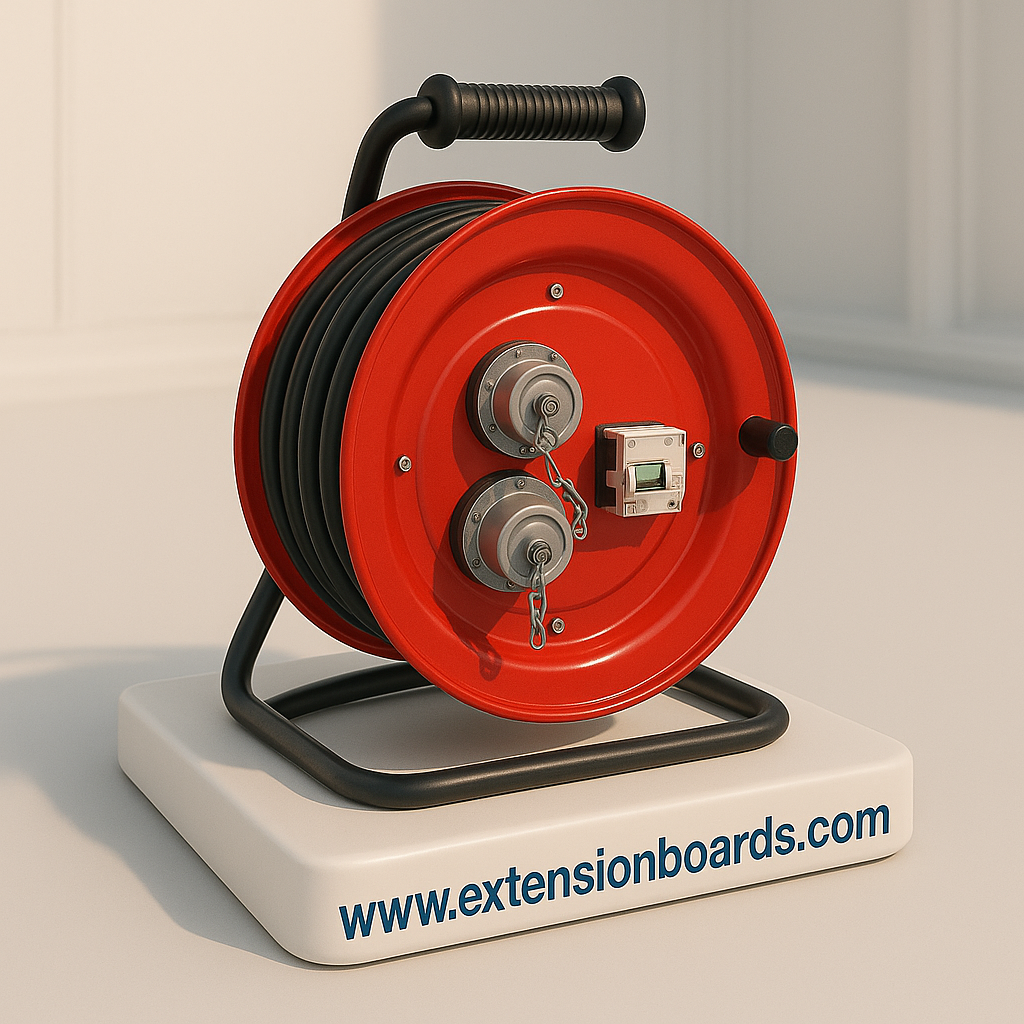

Cable Extension Drum with Metal Clad Sockets

Rs 129.99

Robust 8-socket extension board

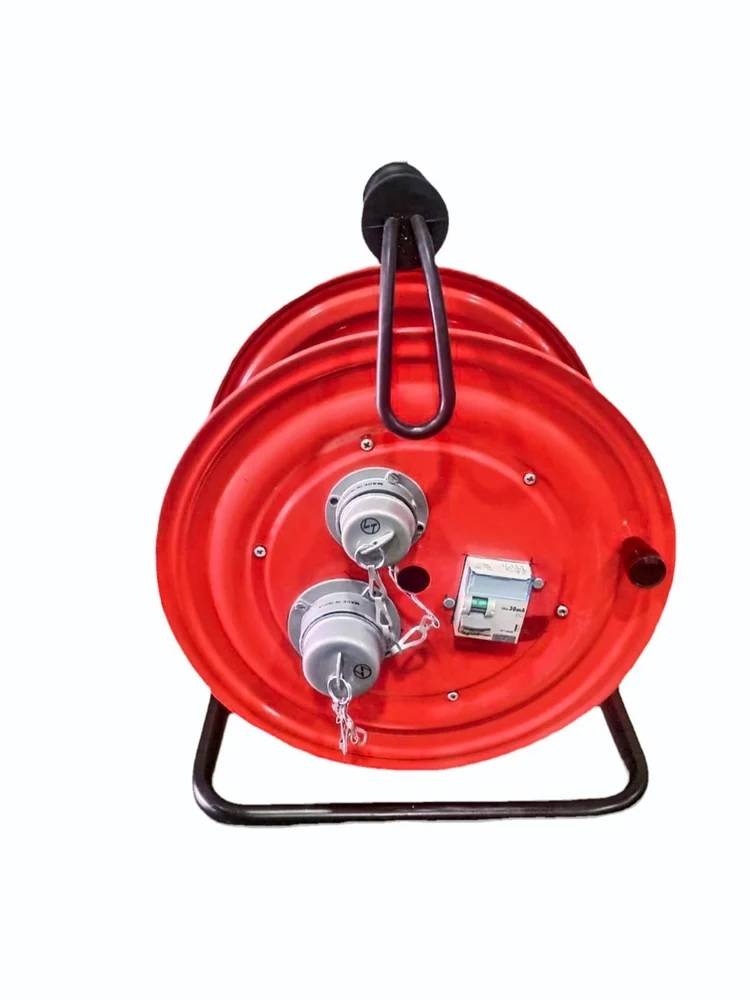

🔌 Heavy-Duty Cable Extension Drum with Metal Clad Sockets (Custom Built)

🧰 Product Overview:

Built for industrial-grade power distribution, this portable cable extension drum is ideal for construction sites, shutdowns, workshops, event setups, and maintenance operations. Housed in a rugged metal or polycarbonate drum, this unit is equipped with high-performance Metal Clad sockets and configurable incomer protection such as MCB, RCCB, RCBO, or ELCB+MCB.

⚙️ Technical Specifications:

Feature Description
Socket Type Metal Clad (MC), Industrial Grade
Socket Options 20A 2-Pole / 20A 3-Pole (with safety covers)
No. of Sockets 1 to 4 sockets (standard 2 shown)
Voltage 230V / 415V AC
Incomer Protection MCB, RCCB, RCBO, EL + MCB (as per site load)
Breaker Ratings 20A / 25A / 32A – 2P or 4P
Drum Type Steel Powder-Coated / Heavy Polycarbonate
Mounting Frame MS Tubular Handle Frame (with grip)
Mobility Hand-portable (Optional wheeled trolley version)

🔌 Cable Specifications (Customizable):

Cable Type Description Suitable For
1.2 mm² x 3 Core Light-duty extension Domestic & light tools
1.5 mm² x 4 Core Single-phase + Earth Medium load site tools
2.5 mm² x 3 Core High current single-phase Welders / drills
2.5 mm² x 4 Core Three-phase 20–25A loads Industrial motors/mixers

  • Cable length: 5m to 30m (standard), up to 50m on request

  • ISI-marked FRLS copper cable used for all drum wiring

🛡️ Protection Options (Incomer Side):

  • MCB: Overload protection

  • RCCB: Earth leakage protection (30mA / 100mA)

  • RCBO: Compact MCB+RCCB combined unit

  • EL + MCB Combo: Separate earth leakage + overload safety

  • Input Source: Plug or bare end cable, as required

🌐 Applications:

  • Power tools, welding machines, grinders

  • Site maintenance in plants and infrastructure

  • Temporary installations during shutdowns

  • Outdoor event lighting and audio

  • Emergency repair teams and mobile service units

  • High-current machines on long cable runs

📦 Customization Options:

  • Socket arrangement: 2 SOCKETS / 3 SOCKET’S / 4 SOCKETS or Mixed

  • Panel material: Powder-Coated Metal or Polycarbonate Drum

  • Incomer location: Left/Right/Back-mounted plug or gland

  • Drum size: 14″, 16″, 18″ (based on cable length/load)

  • Indicator lamp or voltmeter (optional)
